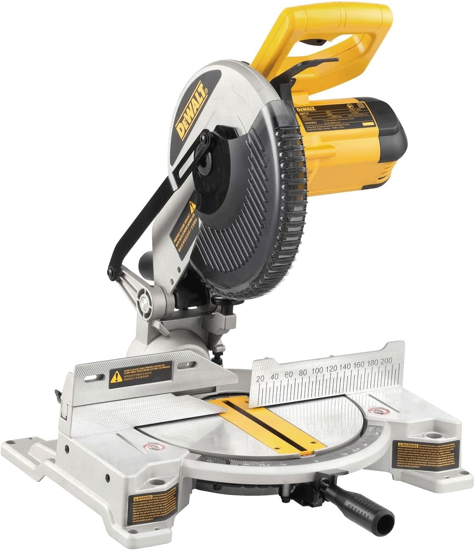

DEWALT DW714-B5 : 250MM 1650W MITRE SAW
FEATURES
- Cam Action Mitre Lock Function Makes Mitre Setting Faster And Easier Allowing The User To Quickly Adjust Angles Between 0° - 50° Left And 0° - 60° Right.
- Wide Die Cast Aluminum Base Provides Plenty Of Work-piece Support, With Base Extension Capabilities.
- Horizontal D-handle Design for Comfortable and Fatigue-free Operation.
- Sliding Fence Gives Maximum Support In Large Material Cuts.
- Scale on the Fence offer Better Operation.
- 1650W Universal Motor.
- Beveling Lever.
- Vertical Clamp.
SPECIFICATIONS
- Power Input : 1650W
- Blade Speed : 4600 rpm
- Blade Diameter : 250 mm
- Blade Bore Diameter : 30 mm
- Bevel Capacity : 48/0 °
- Mitre Capacity [right/left] : 52/47 °
- Cutting Capacity at 90°/90° (W x H) : 130 x 68 mm
- Cutting Capacity at 90°/45° (W x H) : 130 x 40 mm
- Cutting Capacity at 45°/90° (W x H) : 91 x 68 mm
- Max. Cutting Capacity at 45°/45° : 91 x 40 mm
- Max. Depth of Cut [Saws] : 89 mm
- Weight : 13.1 kg
- Length x Height : 600 x 425 mm
